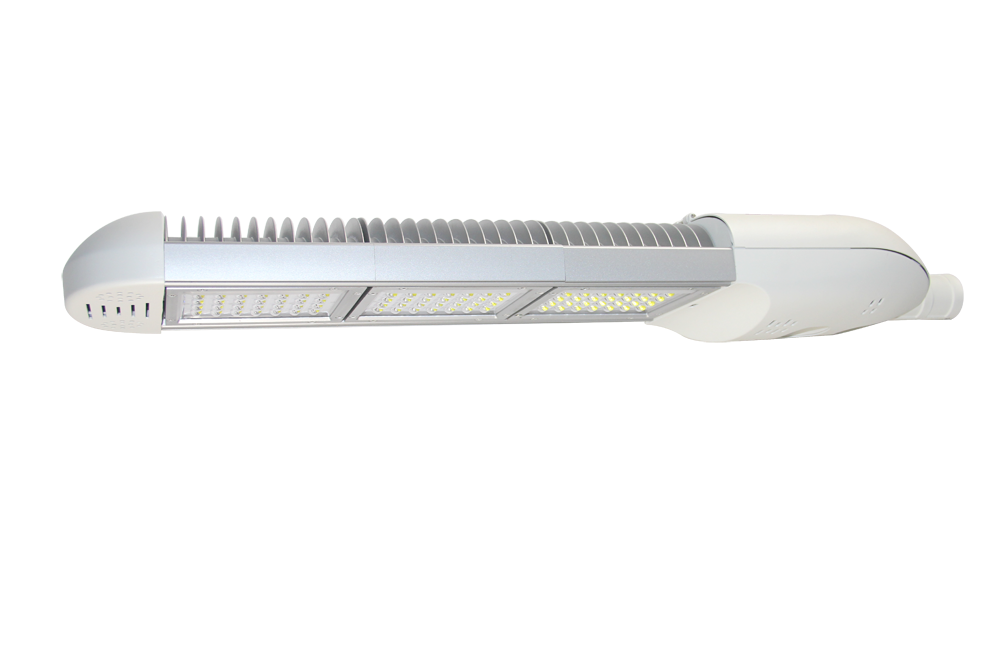

84W I-Smart Series
CREE LEDs, flip chip technology, single unit’s damage won't affect others' normal work;
Honeycomb briquette effect heat dissipation principle, best thermal management system;
Designed to last at least 50,000 hours at L70;
Multiple lighting distributions available;
Wide power range: 20W~240W;
Standard color temperatures: 3000K, 4000K, 5000K, 5700K;
Minimum 70 CRI;
IP66 modules: high waterproof level, hot-pluggable, easy for installation and replacement;
Aluminum housing;
Multiple housing colors: black, grey;
Easy tool onsite maintenance and repair;
5-year limited warranty.
]N3AF4A%V33G_$G36.jpg)
Details
Parameter
Solutions
Project
CREE LEDs, flip chip technology, single unit’s damage won't affect others' normal work;
Honeycomb briquette effect heat dissipation principle, best thermal management system;
Designed to last at least 50,000 hours at L70;
Multiple lighting distributions available;
Wide power range: 20W~240W;
Standard color temperatures: 3000K, 4000K, 5000K, 5700K;
Minimum 70 CRI;
IP66 modules: high waterproof level, hot-pluggable, easy for installation and replacement;
Aluminum housing;
Multiple housing colors: black, grey;
Easy tool onsite maintenance and repair;
5-year limited warranty.
| Optical Spec | |
| Module Quantity | 3 |
| LED Quantity | 84pcs |
| Lamp Efficiency | >105LM/W |
| LED Efficiency | 150LM/W |
| Initial Delivered Lumen | 11970LM |
| Normal Lminous Flux | 11130LM |
| LED Color Temperature | 5000K/5700K |
| Color Rendering Index | Ra>70 |
| Beam Angle | 1500X800 |
| Light Distribution | TYPEⅠⅡⅢⅣ |
| Electrical Spec | |
| Input voltage Frequency | AC100-277V 50/60Hz |
| Power Factor | >0.95 |
| Input Power | 106W |
| Power Efficiency | >0.95 |
| Other Spec | |
| Operation Temperature | -40°C~45°C |
| Operating Humidity | 10-90RH |
| Storage Temperature | -30°C-50°C |
| Dimension(mm) | L1022*W234*H134mm |
| Shell material | Aluminum+Optic PC |
| Net Weight | 9±0.2kg |
| Lifespan | 5000h |
